About This

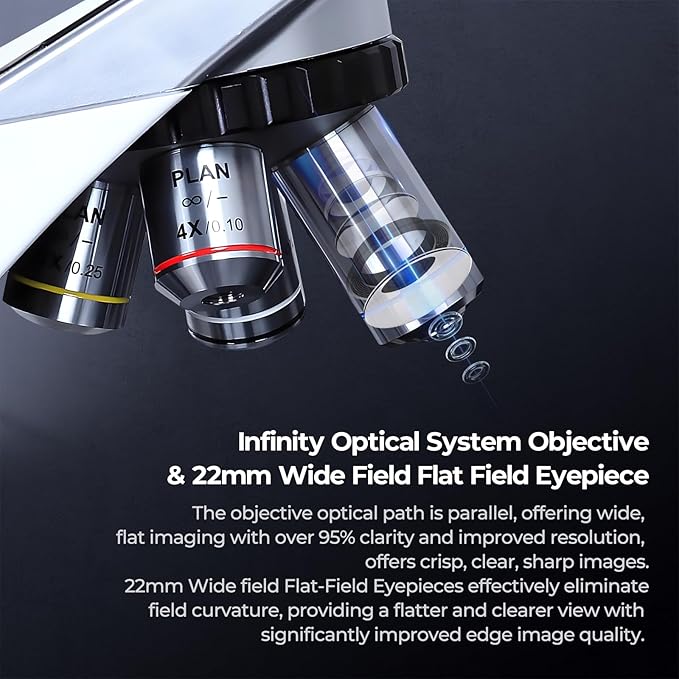

• [Infinity Optical System Objective & 22mm Flat Field Eyepiece]: The objective optical path is parallel, offering wide, flat imaging with over 95% clarity and improved resolution, offers crisp, clear, sharp images.PL10X/22mm Wide field Flat-Field Eyepieces effectively eliminate field curvature, providing a flatter and clearer view with significantly improved edge image quality.

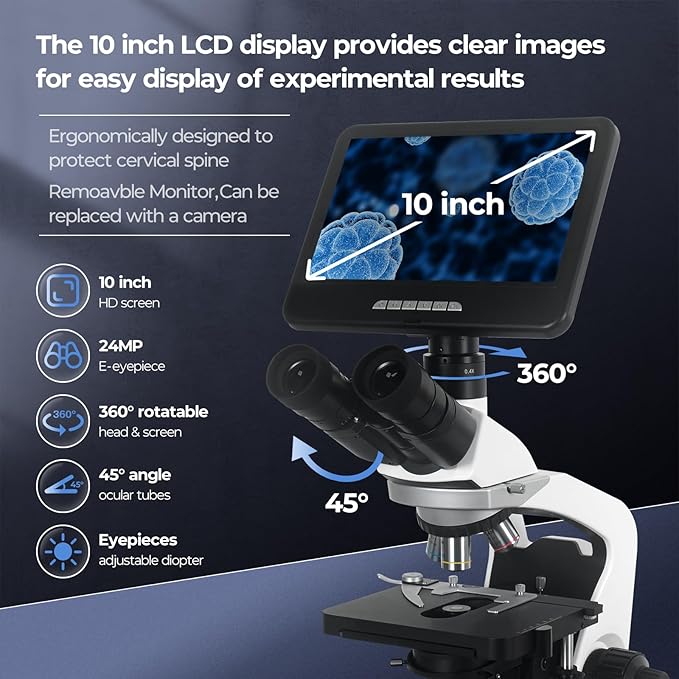

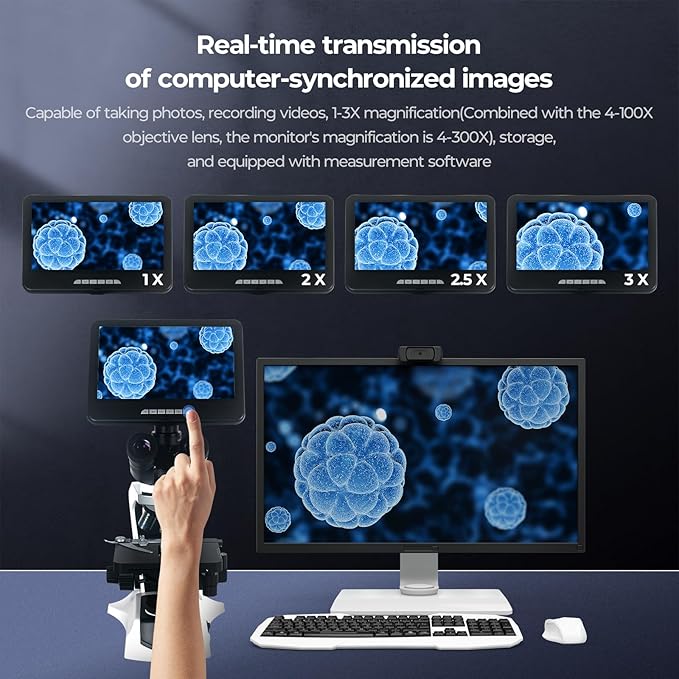

• [Upgrade Monitor]: Redesigned with a separate electronic chip, allowing the monitor to be replaced with a camera.Plus, this monitor has HDMI and USB interface for real-time transmission of computer-synchronized 4K images. Capable of one-click taking photos, recording videos, 1-3X magnification(Combined with the 4-100X objective lens, the monitor's magnification is 4-300X), TF storage, and equipped with free measurement software.【The other model's monitor is the normal monitor which only shows the view】
• [One-click Function & Sofware]: This model's monitor can one-click taking photos, recording videos, 1-3X magnification, TF storage, HDMI & USB interface, is the most powerful microscope with monitor in the market.The free software allow measuring lengths, angles, and areas, as well as editing images.
• [Interface & Resolution]: The monitor has HDMI and USB interfaceDifferent interface output resolution is different, the HDMI interface output 4K resolution (Need to use 4K screen), USB interface output 24MP pixels. Video resolution: ultra -high -definition 2880x2160 24 frames; full HD 1920x1080 60 frames/30 frames; HD 1280x720 120 frames/60 frames/30 frames. Photo resolution: up to 24m (5600x4200)

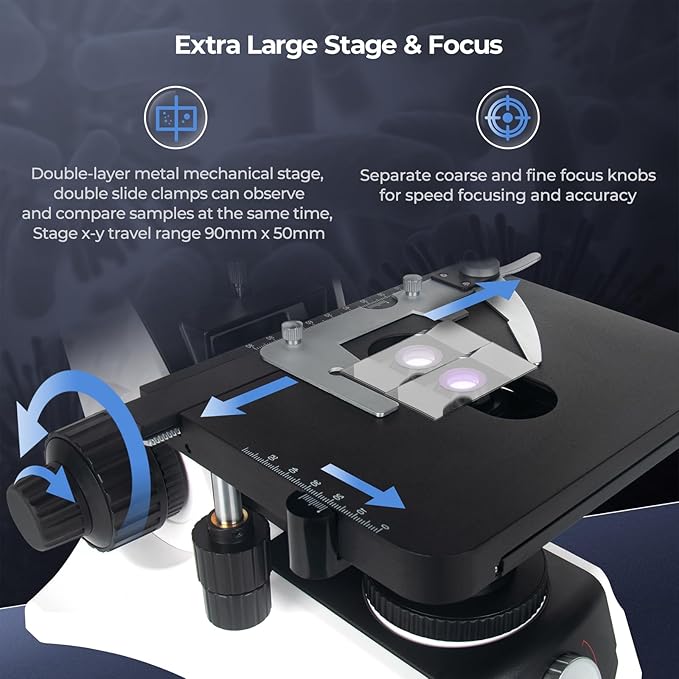

• [Extra Large Stage & Focus]:Double-layer metal mechanical stage, double slide clamps can observe and compare samples at the same time, Stage x-y travel range 90mm x 50mm. Separate coarse and fine focus knobs for speed focusing and accuracy.

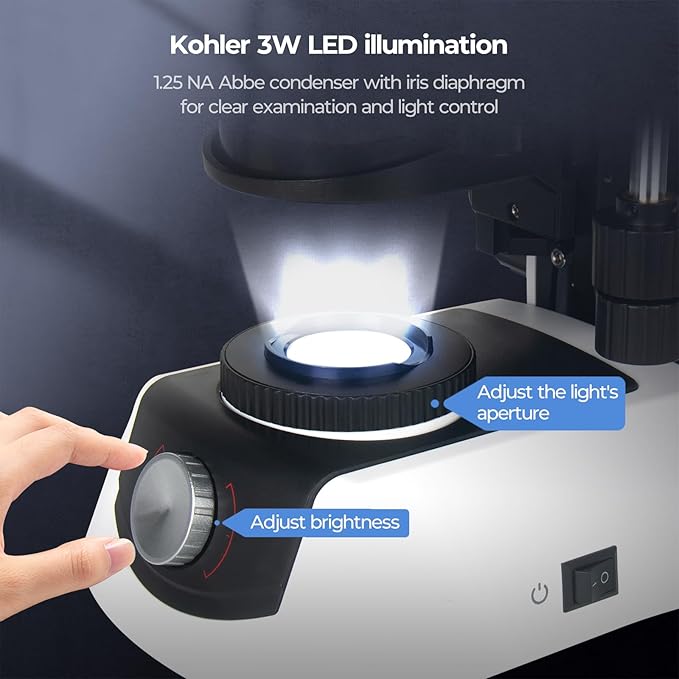

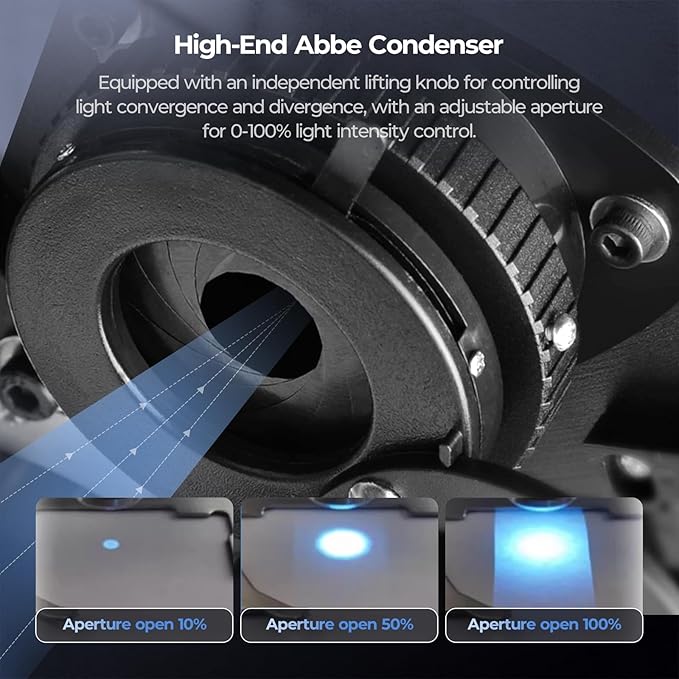

• [LED illumination & Abbe Condenser]: Kohler 3W LED illumination 1.25 NA Abbe condenser with iris diaphragm for clear examination and light control. Equipped with an independent lifting knob for controlling light convergence and divergence, with an adjustable aperture for 0-100% light intensity control.

Overview

• Light Source Type : LED
• Model Name : VB-M010-M-US
• Real Angle of View : 30 Degrees
• Magnification Maximum : 1000 x
• Voltage : 110 Volts
• Brand : Vabiooth
• Manufacturer : Vabiooth
